Plans and materials list

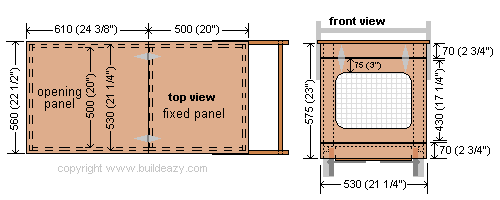

Below are the plans and materials and cutting list for the indoor rabbit hutch.
Use as reference in conjunction with the instructions in the next page.
Materials list
| Material | Used For | Amount and size |
| 15mm (5/8″) or thicker sheetAny broad, thin surface. panelA sheet that forms a distinct flat and rectangular section or component. A transparent panel used to fill a framed section of a window. such as plywoodA piece of wood made of three or more layers of wood veneer laminated together with glue., mdfA special type of tempered hardboard with a fine, smooth finish. MDF is used in cabinet making. boardA piece of sawn, or dressed lumber of greater width than thickness. Usually 19mm (3/4") to 38mm (1 1/2") thick and 75mm (3") or more wide. or any other similar type of sheet panel woodTimber, lumber. The hard fibrous lignified substance under the bark of trees. | Side panels | 2 pieces @ 1050mm (42″) x 575mm (23″) |
| 15mm (5/8″) or thicker sheet panel such as plywood, mdf board or any other similar type of sheet panel wood. | Floor panel | 1 piece @ 1050mm (42″) x 500mm (20″) |
| 15mm (5/8″) or thicker sheet panel such as plywood, mdf board or any other similar type of sheet panel wood. | Front panel | 1 piece @ 530mm (21 1/4″) x 430mm (17 1/4″) |
| 15mm (5/8″) or thicker sheet panel such as plywood, mdf board or any other similar type of sheet panel wood. | Rear panel | 1 piece @ 530mm (21 1/4″) x 575mm (23″) |
| 15mm (5/8″) or thicker sheet panel such as plywood, mdf board or any other similar type of sheet panel wood. | Top panels | 1 piece @ 610mm (24 3/8″) x 560mm (22 1/2″) 1 piece @ 500mm (20″) x 560mm (22 1/2″) |

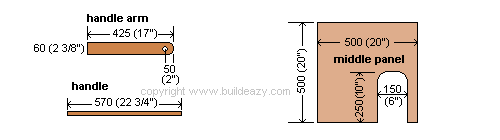

| 15mm (5/8″) or thicker sheet panel such as plywood, mdf board or any other similar type of sheet panel wood. | Middle panel | 1 piece @ 500mm (20″) x 500mm (20″) |
| 50mm x 50mm (2″x2″) wood | Rear legs | 2 pieces @ approximately 675mm (27″) long |
| 70mm (2 3/4″) wood | HorizontalParallel to the horizon, flat, level. members above and below the front panel and for the handle arms | 2 pieces @ approximately 530mm (21 1/4″) long 2 pieces @ 425mm (17″) long |
| 25mm (1″) diameter dowelA round wooden pin that is used to reinforce a wood joint. The round wooden pin fits into corresponding holes in adjacent pieces of wood and helps fastens them securely together. (round wood) | Handle | 1 piece @ 570mm (22 3/4″) long |
| 90mm x 70mm (2 1/2″ x 3 1/2″) wood | Wheel and axle support | 1 piece @ approximately 380mm (15 3/8″) long |
| Hinges | Front hatch, top hatch and side doorA horizontal framing member above the door/window opening. | 6 |
| 25mm (1″) gap welded mesh | Front and side panel openings | 3 pieces @ approximately 450mm (18″) x 450mm (18″) |
| OTHER STUFF…… You will also need a couple of wheels, a couple of bolts at least 150mm (6″) long to use as axles, a bit of metal strapShort lengths of metal strap 25×1 (1/16×1) used to fix members together to resist uplift. to fixTo secure with nails or screws. the axles to the wheel and axle support , assorted screws, a bit of glue and three door and hatch latches or something similar that can keep the hatches and door shut.. | ||
