Assemble the spokes
A bit of angle information
To cut a 30 degree angle, How much the teeth are angled out on a circular saw blade. the blade on your miter saw to the required angle. The 60 degree angle will have to be cut with a handsaw, as miter saws will not do such a cut.
Don’t know how to get a 30° or 60° angle?
Click on one of the links below to bring up an angle pattern image. You can then print out that image and use it as a pattern.
Step 3: Assemble the spokes for the upper and lower frames

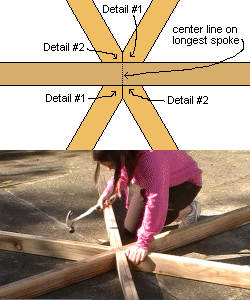

Mark the center point on the longest upper spoke and the longest lower spoke.
Align the points of the shorter spokes to the center lines of the respective longest spokes (for upper frame and lower frame). See the profile detail in ‘Step 2:’ above.
Note: The upper frame and the lower frame are made up in the same way. They are the same in every way, with the exception of the lower frame having longer spokes.
Use the pictures and the plans to determine the placement of the spokes at the junction (where they all meet in the middle).
Then A short nail with a large flat head used for securing roofing felt, plasterboard, sheet metal to wood etc. the spokes together.
Do not To secure with nails or screws. the metal strapping yet – we will do that later on when we are sure that the spokes are evenly spread.
