Steps 1 to 3. The eave soffit, the frieze board and preparing for the roof
The roof
Ft and inch version:
The roof is a 45° pitched hip roof with a dormer. It is constructed from 1/2″ MDF board, all except for the eaves (the underside of the overhang at the bottom of the roof), which is constructed from ¾” x 2 ½” and ¾” x ¾” wood.
Metric version:
The roof is a 45° pitched hip roof with a dormer. It is constructed from 12mm MDF board, all except for the eaves (the underside of the overhang at the bottom of the roof), which is constructed from 70mm x 18mm, and 18mm x 18mm wood.
Step 1. The eave soffit
Ft and inch version:

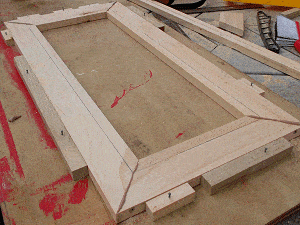

Out of ¾” x 2 ½” wood, cut two pieces 29″ long with a 45° miter at each end. Also cut two pieces 14¼ long with a 45° miter at each end.
Then glue and nail the four pieces together in ‘picture frame’ style.
Fix some temporary blocks around the perimeter to hold it all in place.
Metric version:
Out of 70mm x 18mm wood, cut two pieces 725mm long with a 45° miter at each end. Also cut two pieces 355mm long with a 45° miter at each end.
Then glue and nail the four pieces together in ‘picture frame’ style.
Fix some temporary blocks around the perimeter to hold it all in place.
Step 2. The frieze board
The frieze board is the bit that runs around the underside of the roof and encircles the house walls.
Ft and inch version:

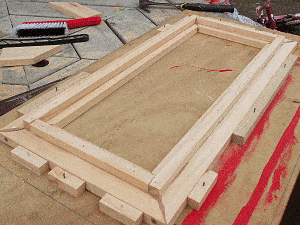

To fix the frieze board to the soffit, cut to length, and glue and nail ¾” x ¾” wood on top of the soffit (‘picture frame’), 2″ in from the edge, all the way around.
Metric version:
To fix the frieze board to the soffit, cut to length, and glue and nail 18mm x 18mm wood on top of the soffit (‘picture frame’), 50mm in from the edge, all the way around.
Step 3. Preparing for the roof

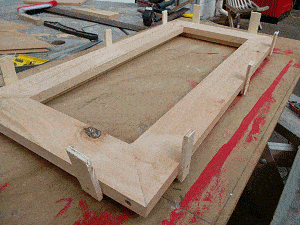

When the glue has dried, turn the eave unit over so it is actually the right way up.
Fix some temporary wood pieces around the outside of the eave unit (‘picture frame’).
This is to hold the pitched roof pieces in place until the glue dries.
On page 8 of the purchased plans it states to cut both pieces 1a and 1b to an overall length of 29 inches. I think this length should be 26 inches to correspond with the 26 inches used to cut the long side of the eave soffit on page 7. After I got all of the roof pieces cut out I started to put it together and saw that pieces 1a and 1b were too long. Assuming I am correct and 1a and 1b should be 26 inches then my next question is, does the 14 3/4 measurement at the top of 1a and 1b have to be shortend by the same amount or does it stay the same? I am enjoying this project and will be able to not make silly mistakes when I build my second one as soon as I finish this one. I certainly am learning how to cut the 35 and 45 degree angles. The secret when using a skill saw is to always be able to see where the blade is cutting and not rely on the guide on the saw.
Buildeazy reply:
Thank you for pointing that out. There was a measurement error in Step 1. The long side of the eave soffit in Step 1 should be 29 inches (not 26 inches).
It has now been rectified.
Les Kenny
Here a some pictures of my finished doll house. As you can see I added some shutters to the windows. I want to give you some feedback of my experience doing this build.
1. When I had finished the build, the roof did not fit. I had to saw away part of the frieze board to make it fit. The reason for this was that in placing the frieze board in 2 inches from the outside edge of the frame only leaves 10 1/4 inch of space (14.25 minus 4 equals 10.25). The doll house is 9 inches wide plus the back (1/2 inch) plus the board added across the top front for stability (3/4 inch) which totals 10.25. To solve this problem as I build my second doll house, I am putting the frieze boards in by only 1 3/4 inches. This will allow plenty of clearance for the roof to fit.
2. If the two piece 3 pieces are cut as shown on page 6 of the plans they will not work since they are identical. I plan to move the lower piece 3 to the upper right hand corner of the board as a mirror image and I think it will work fine.
3. This one you are already aware of. That is the incorrect length ( 26 vs 29) on the first board I cut on page 7 of the plans.
4. On page 9 of the plans you show the inside of the dormer being trimmed for readiness for the front wall. This would be much easier if you marked the dormer on the front of the roof and trimmed out what is necessary prior to gluing the dormer in place.
Started my second doll house today and hope to have an easier time based on my experience of building my first one.
E. Stevens
