How to build an Old Style Park Bench

park bench photo finished

Introduction and material list

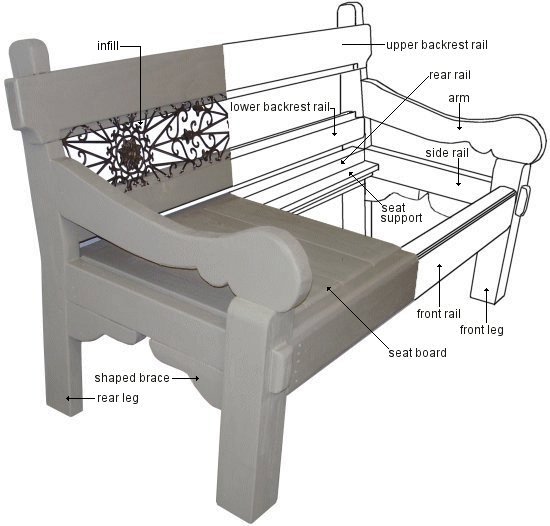

schematics of an old style park bench
bench at melborne zoo

Introduction

The idea for this project came from a bench that I spotted in the zoo whilst on a trip to Melbourne, Australia (see picture to the right).
Although my version didn’t look nearly as old or as rustic as the original, it still turned out to be a mighty bench!

Dimensions

Ft and inch version

Overall the bench is nearly 60″ long, 35″ high and a little over 30″ deep.

Metric version

Overall this bench is nearly 1500mm long, 875mm high, and a little over 750mm deep.

The wood sizes

The dimensions given throughout this project are the finished (actual) sizes.
There are three stock sizes used in this project. They are 1 1/2″ x 3 1/2″, 1 1/2″ x 5 1/2″, and 3 1/2″ x 3 1/2″.

You will need

Ft and inch version

Wood
Nominal sizeActual sizeUsed forTotal amount
2″ x 4″1 1/2″x 3 1/2″lower backrest rail, seat support, side rails13ft
2″ x 6″1 1/2″x 5 1/2″rear rail, front rail, rear legs, arms, seat boards37ft
4″ x 4″3 1/2″ x 3 1/2″front legs40″

Metric version

Wood
Nominal sizeActual sizeUsed forTotal amount
100mm x 50mm90mm x 45mmlower backrest rail, seat support, side rails4m
150mm x 50mm145mm x 45mmrear rail, front rail, rear legs, arms, seat boards11m
100mm x 100mm90mm x 90mmfront legs1m

You will also need

Ft and inch version

-Two of 8″ long galvanized lag screws (coach screws),
-fifty of 2″ wood screws,
-a handful of 4″ galvanized nails,
-a handful of 3″ galvanized nails,
-some exterior wood glue,
-and some type of decorative wrought iron or metal pattern for the infill at the back of the bench.

Metric version

– Two of 200mm long galvanized coach screws,
– fifty of 50mm wood screws,
– a handful of 100mm galvanized nails,
– a handful of 75mm galvanized nails,
– some exterior wood glue,
– and some type of decorative wrought iron or metal pattern for the infill at the back of the bench.

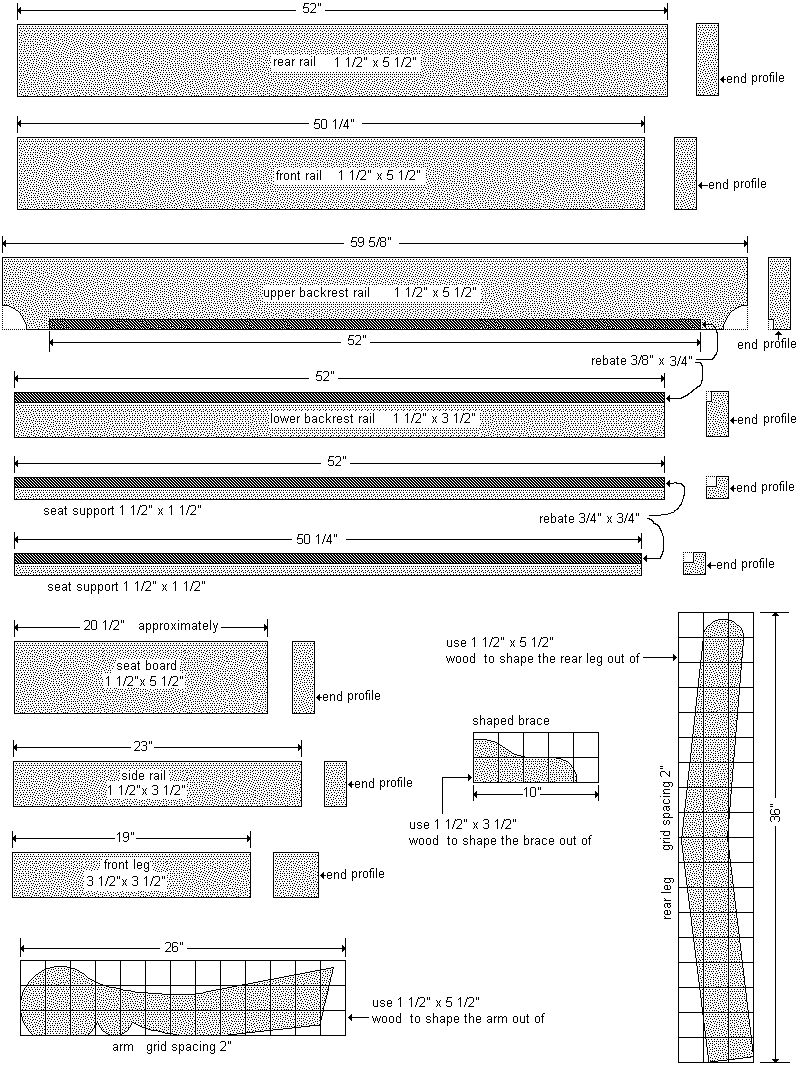

Plans – The individual pieces

The pieces

Below are the drawings and dimensions for every piece required to make the park bench.

Ft and inch version

old style bench imp pieces

style=”clear: both;”> >

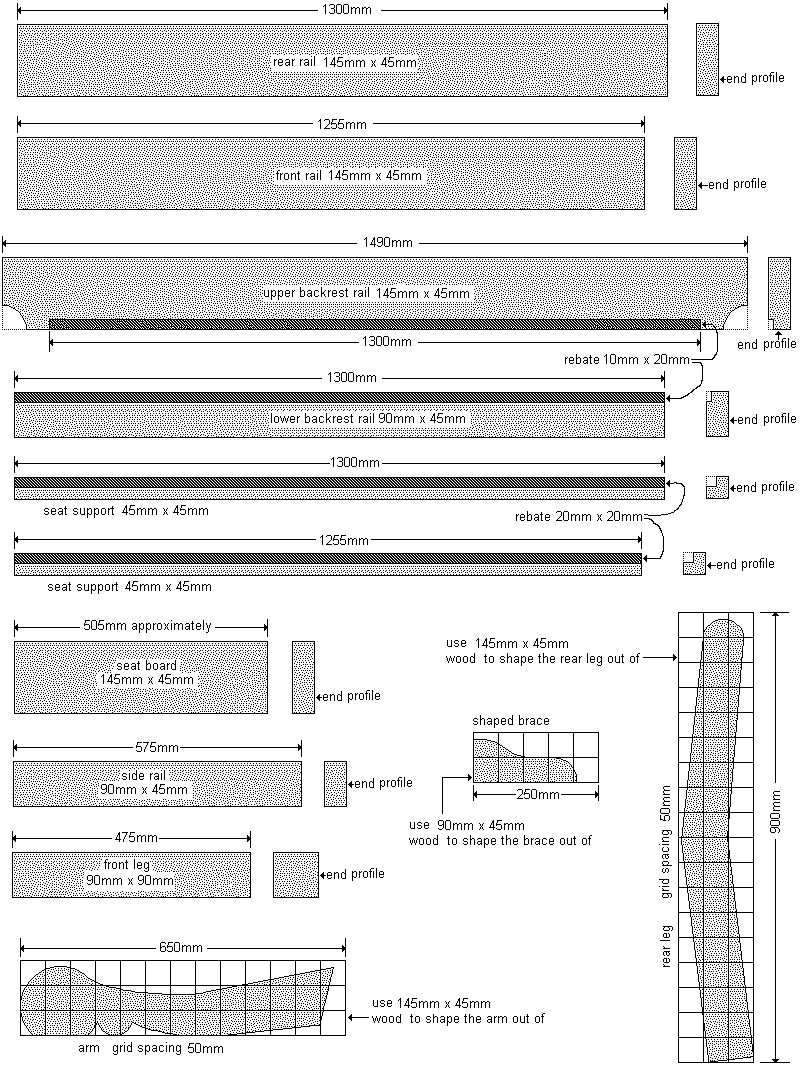

Metric version

rustic bench pieces

>> > >

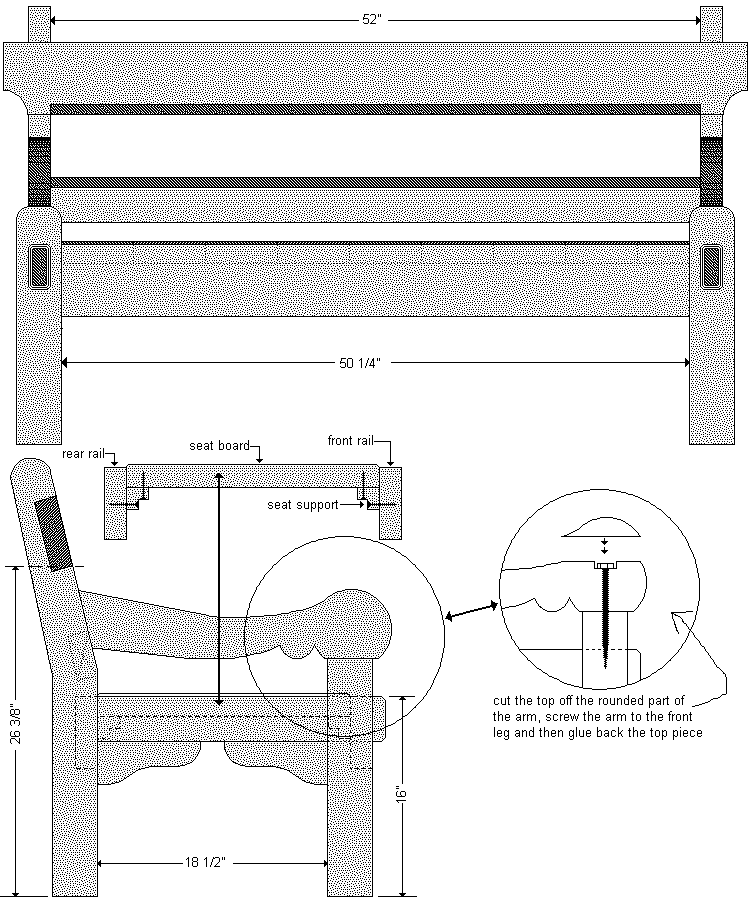

Plans – Elevations and details

The Plans and cut-out detail

Ft and inch version

old style bench imp plans

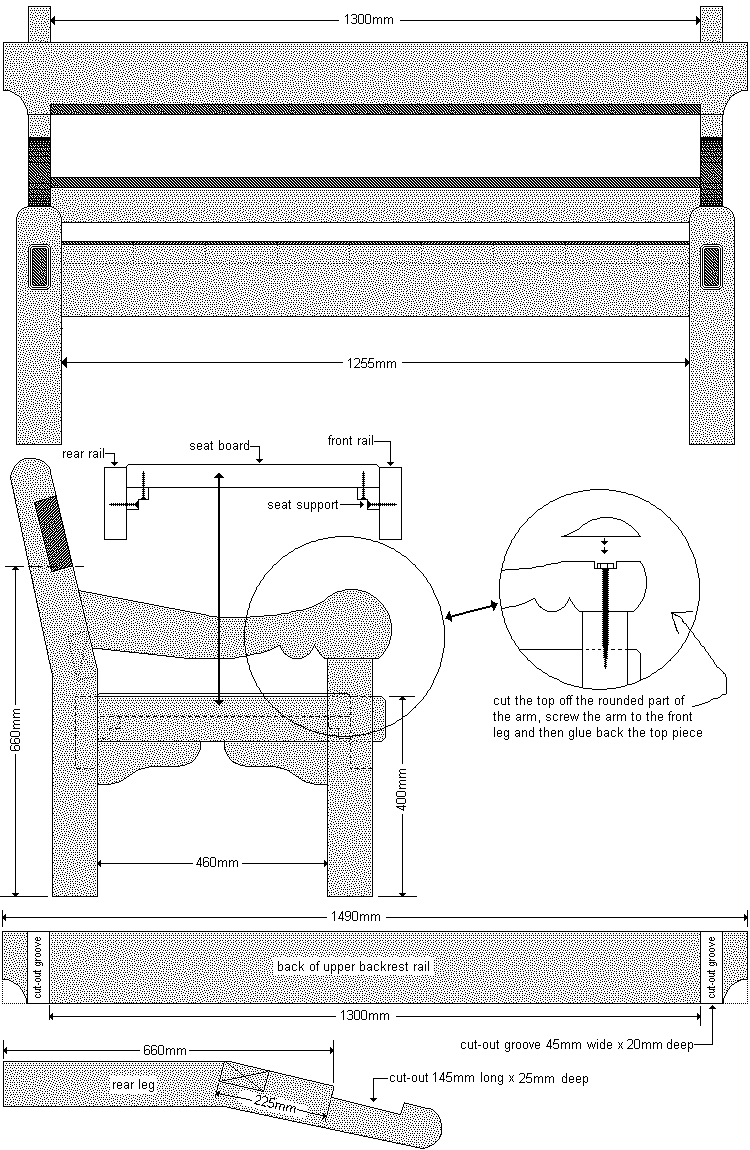

Metric version

rustic bench plans

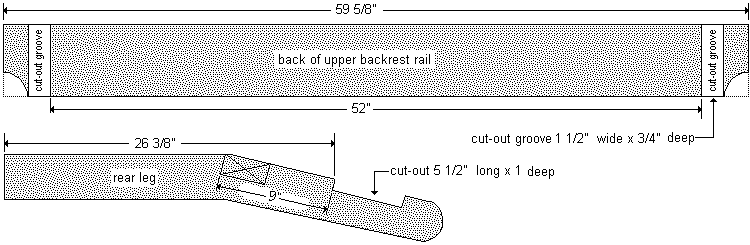

Cut-out detail

Ft and inch version

old style bench imp cut outs

Instructions – Making the legs

mark the mortise in the front legs

Step 1: Make the front legs

Ft and inch version

Out of 3 1/2″ x 3 1/2″ wood, cut two pieces (the legs) at 19″ long.

Metric version

Out of 90mm x 90mm wood, cut two pieces (the legs) at 475mm long.

They will each need a hole (mortise) cut through them to house the side rails.

To do this, first mark the mortise hole positions on the legs.

The holes will need to be marked on both sides of each leg, so they can be worked on (drilled and chiseled) from both sides.

drill out the holes

The top mark of each hole will be 16″ (400mm) up from the bottom of each leg.

The hole size will be the same as the side rail width and thickness, which is 1 1/2″ x 3 1/2″ (90mm x 45mm)

Mark the holes accordingly on both sides of each leg.

Ft and inch version

front leg plan

style=”clear: both;”> >

chisel out the holes

Metric version

tb park bench insert 1

style=”clear: both;”> >

Cut out the holes (mortises)

Drill out the waste, drilling from both sides of the legs.

Drill inside the marked areas, as close to the marks as possible.

Clean up the holes in both legs with a chisel, coming through from both sides, bit by bit, until the mortises are formed and the side rails can fit snugly into the holes. Then slightly round the tops of the legs with sandpaper (see drawing above).

cut and shape the rear leg

Step 2: Make the back legs

Ft and inch version

Shape the back legs out of 1 1/2″ x 5 1/2″ wood.

Cut two pieces 36″ long.
Draw a grid on one of the pieces with the grid spacings 2″ apart.

Metric version

Out of 90mm x 45mm wood, cut two side rails at 575mm long.

The front legs are already made (step 1).

Add some glue to the insides of the mortise holes in the front legs.

Then tap the side rails in through the mortises, until they protrude 25mm out the other side.

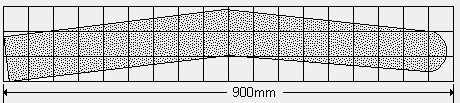

Using the picture below as reference (or using a clearer picture here), approximate the points between the grid lines on the leg piece. Then draw lines from point to point so that you have a pattern on the leg piece similar to the pattern drawing below.

Ft and inch version

park bench insert imp 2

style=”clear: both;”> >

Metric version

tb park bench insert 3

>> style=”clear: both;”> >

Then cut the wood along the lines using a power saw, jig-saw and handsaw where needed.

Once you have cut out the first rear leg, use it as a pattern to mark and cut the second leg.

Making the arms

the legs and the side rails

Step 3: Join the front legs and side rails

Ft and inch version

Out of 1 1/2″ x 3 1/2″ wood, cut two side rails at 23″ long.

Metric version

Shape the back legs out of 145mm x 45mm wood.

Cut two pieces 900mm long.

Draw a grid on one of the pieces, with the grid spacings 50mm apart.

The front legs are already made (step 1).

Add some glue to the insides of the mortise holes in the front legs.

Then tap the side rails in through the mortises, until they protrude 1″ out the other side.

Ensure that the side rails are at right angles (90°) to the front legs.

You can then hammer a couple of nails into each leg to secure the joints.

a mortise and tenon joint

Step 4: Make the arms

Ft and inch version

park bench insert 3

Cut two pieces of 1 1/2″ x 5 1/2″ wood, 26″ long for the two arms.

Draw a grid on one of the pieces with the grid spacings 2″ apart.

Metric version

Cut two pieces of 145mm x 45mm wood, 650mm long for the two arms.

Draw a grid on one of the pieces with the grid spacings 50mm apart.

park bench photo 4

Using the picture below as reference (or using a clearer picture here) approximate the points between the grid lines on the arm piece. Then draw lines from point to point so that you have a pattern on the arm piece similar to the pattern drawing below.

Ft and inch version

park bench insert imp 4

style=”clear: both;”> >

Metric version

tb park bench insert 4

style=”clear: both;”>> style=”clear: both;”> >

Prior to cutting, hold the marked piece of wood in position in relation to the front and rear legs (which are temporarily placed together), to ensure the back angle of the arm is correct (see photo top-right).

Then cut the arm shape out using a power saw, jig-saw and handsaw where needed.

Once you have cut out the first arm, use it as a pattern to mark and cut the second.

The cut-outs

Step 5: Cut the rest of the frame pieces

the park bench pieces

Cut the rest of the frame pieces which are…
The rear rail, the front rail, the upper backrest rail, the lower backrest rail, and two seat support pieces.

Refer to the piece plan for all the necessary dimensions.

Ft and inch version

The seat supports are 1 1/2″ x 1 1/2″ wood, 50 1/4″ long.
Rip (cut lengthwise) a length of 1 1/2″ x 3 1/2″ wood in half to get the two seat support pieces.

Metric version

The seat supports are 45mm x 45mm wood, 1255mm long.
Rip (cut lengthwise) a length of 90mm x 45mm wood in half to get the two seat support pieces.

The upper backrest rail, the lower backrest rail, and two seat support pieces all need rebates cut in them.
The piece plan also gives the rebate dimensions.
The rebates can be easily cut out with a circular saw.

rebate detail

style=”clear: both;”> >

the shaped braces for the bench seat

Step 6: Make the shaped braces

Cut four shaped braces to go in the corners where the legs and side rails meet, to give added bracing strength.

Ft and inch version

Use 1 1/2″ x 3 1/2″ wood to cut the braces out of.

Draw a grid on one of the pieces with the grid spacings 2″ apart.

Metric version

Use 90mm x 45mm wood to cut the braces out of.

Draw a grid on one of the pieces with the grid spacings 50mm apart.

Using the picture below as reference, approximate the points between the grid lines on the brace piece then draw lines from point to point so that you have a pattern on the brace piece similar to the pattern drawing below.

brace pattern

style=”clear: both;”> >

Then cut the brace shape out using a power saw, jig-saw and handsaw where needed.

Once you have cut out the first brace, use it as a pattern to mark and cut the other three.

the cut-outs and grooves in the back legs and back rails

Step 7: Make the cut-outs and grooves

The two rear legs require a cut-out (to house the upper backrest rail) and the upper backrest rail requires a grove at each end (to house the rear legs).

The grooves in the backrest fit into the cut-outs in the rear legs in an interlocking fashion.

Both the cut-outs and the grooves can be made by setting the blade in a circular saw to the required depth and making multiple cuts across the cut-out and groove area. They can then be cleaned out with a chisel.

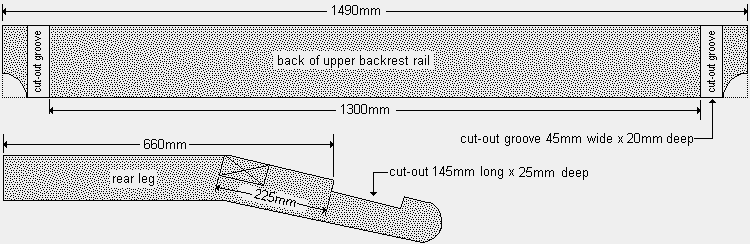

Refer to the plan below for the cut-out and groove dimensions.

Ft and inch version

old style bench imp cut outs

Metric version

tb park bench insert 7

>>

Back and front assembly

the back of the bench

Step 8: Assemble the back

Make up the back comprising of the two rear legs, the upper backrest rail, the lower backrest rail and the rear rail.

The grooves in the upper backrest rail fit into the cut-outs in the top of the rear legs. Once fitted, they can be nailed.

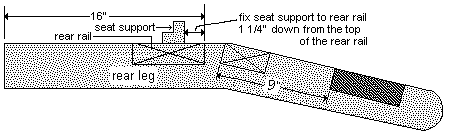

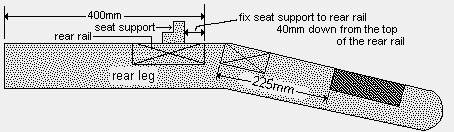

Refer to the drawing below for detail on where to fix the lower backrest rail, the rear rail and a seat support.

Ft and inch version

park bench insert 8 imp

Metric version

tb park bench insert 8

>> style=”clear: both;”> >

Nail the lower backrest rail in place and then screw one of the seat supports to it, 1 1/4″ down from the top.

the bench front assembly

Step 9: Assemble the front

Fix the front rail to the two front legs.

Use the pictures as a guide.

park bench insert 9 botth

style=”clear: both;”> >

park seat frame

Step 10: Join the front to the back

Align the front portion of the bench frame above the back portion, and hold it in position with props and clamps (see photo).

Ensure the alignment is correct and that the lower part of the rear legs are parallel with the front legs, and then nail the side rails to the rear legs.

Leave the clamps on until the shaped braces have been fixed in place.

Seat boards and braces

the seat boards

Step 11: Fit the seat boards

Ft and inch version

Screw a seat support along the front rail 1 1/4″ down from the top.

Measure between the front and rear rails, to determine the length of the seat boards. They should be approximately 20 1/2″ long.
Cut the seat boards out of 1 1/2″ x 5 1/2″ wood.

Metric version

Screw a seat support along the front rail 40mm down from the top.

Measure between the front and rear rails, to determine the length of the seat boards. They should be approximately 505mm long.
Cut the seat boards out of 145mm x 45mm wood.

You will need 9 boards. One may need to be ripped down in order to fit.

Cut the seat boards and fit them, but first apply a run of glue along the seat supports.
Fix by way of screwing from underneath – through the seat supports into the seat boards.

bench braces fixed in place

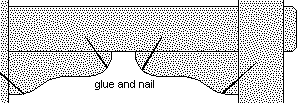

Step 12: Fit the shaped braces

Fix the shaped braces under the side rails against the front and rear legs.

Glue and nail them.

park bench insert 12

style=”clear: both;”> >

Once the shaped braces have been fixed in place, you can take off the holding clamps.

Arms and back infill

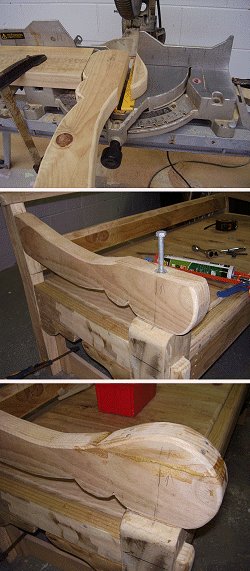

Step 13: Fit the arm

fitting the arm

Cut the tops off the knobs on both arms.

This can be done with a miter saw, band saw, bench saw or even a hand saw.

Add glue to the ends of the arms and the top of the front legs.

Position the arms and fix (nail) the back of them to the rear legs. The front of the arms will be sitting loosely on top of the front legs.

Drill down through the top of the arms into the top of the front legs.
Make the drill hole (through the arm) the same size as the shank of the screw.
Make the drill hole into the top of the leg, a smaller size than the shank of the screw.

Insert the screws (8″ (200mm) long galvanized lag screws) and tighten them.

Then glue and nail the top pieces back on the arm to cover the bolt heads.

fixing the arm to the leg

style=”clear: both;”> >

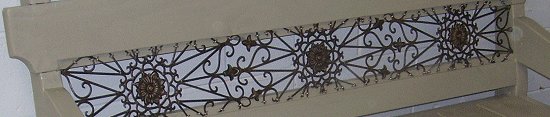

decorative artwork for the back of the bench

Step 14: Paint it and fit the back infill

Finally, Paint the bench and then fit some sort of metalwork to the back of the seat.

This can be wrought iron, a decorative metal wall hanging which can be found at some garden centers, or anything similar – even wood art or trellis.

A seat to be proud of. Enjoy!

add some art work to the back of the seat
